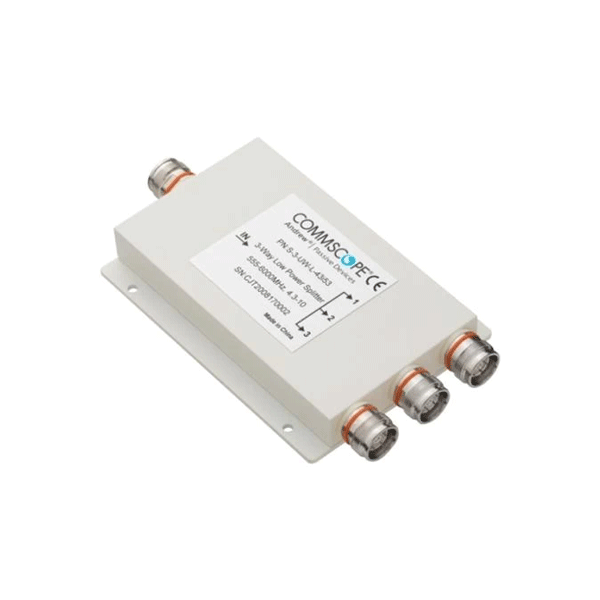

CommScope: Three-way Low Power Splitter, 555-6000MHz, 4.3-10 Female Ports

CommScope: Three-way Low Power Splitter, 555-6000MHz, 4.3-10 Female Ports

• Device Type Splitter
• Application Indoor/Outdoor
• Color White
• Inner Contact Plating Silver
• Interface 4.3-10 Female
• Outer Contact Plating Trimetal
• 3rd Order IMD -153 dBc
• 3rd Order IMD Test Method Two +43 dBm carriers
• Insertion Loss at Frequency Band 0.6 dB @ 555–2700 MHz    |   0.9 dB @ 2700–3800 MHz    |   1.45 dB @ 3800–6000 MHz
• Impedance 50 ohm
• Isolation Between Bands 17.7 dB
• Operating Frequency Band 555 – 6000 MHz
• Power Rating, combining 0.125 W
• Power Rating, Splitting 30 W
• Split Loss 4.8 dB
• VSWR 1.3
