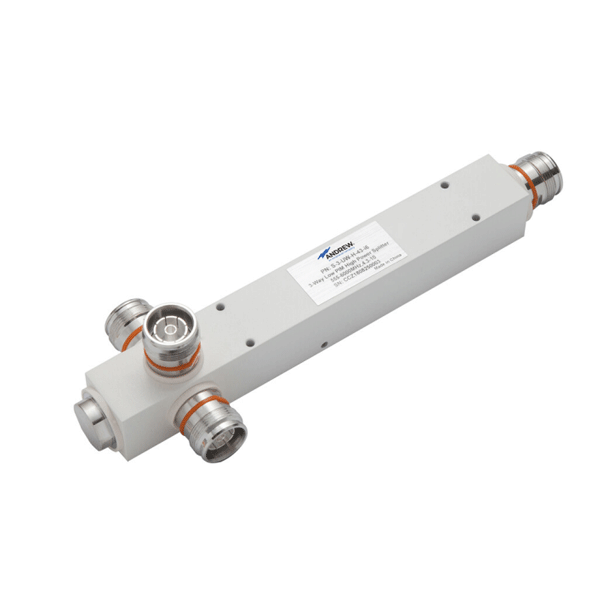

CommScope: Ultra Wideband Three-way Low PIM Reactive High Power Splitter, 555-6000 MHz, 4.3-10 Female Ports

CommScope: Ultra Wideband Three-way Low PIM Reactive High Power Splitter, 555-6000 MHz, 4.3-10 Female Ports

• Device Type Splitter
• Application Indoor/Outdoor
• Color White
• Inner Contact Plating Silver
• Interface 4.3-10 Female
• Outer Contact Plating Trimetal
• 3rd Order IMD -165 dBc
• 3rd Order IMD Test Method Two +43 dBm carriers
• Insertion Loss at Frequency Band 0.2 dB @ 555–2700 MHz    |   0.4 dB @ 2700–3800 MHz    |   0.45 dB @ 3800–4900 MHz    |   0.9 dB @ 4900–6000 MHz
• Return Loss, minimum 19.1 dB
• Average Power, maximum 300 W
• Impedance 50 ohm
• Operating Frequency Band 555 – 6000 MHz
• Peak Power, maximum 3 kW
• Power Rating, Splitting 300 W
