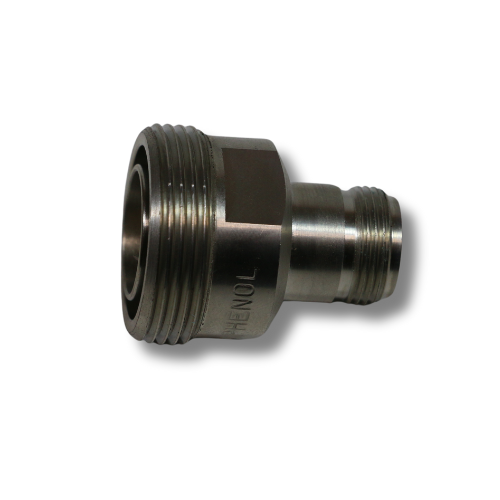

Din (7/16) Female to N Female RF adapter
Part Number:
123-DFNF
Couldn't load pickup availability
Din (7/16) Female to N female RF adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications where main launch cables need protection from wear and tear. 123eWireless RF adapters are designed for low loss with maximum mating cycles without degradation
| CROSS REFERENCE | |
| Alternative To | CA-TNFDF |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| PIM | ≤160dBc |
| VSWR | ≤1.15 @3GHz, ≤1.25 @3GHz-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 6855 / 155/ 56 |
| PHYSICAL SPECIFICATIONS | |
| Inner Conductor | Ag |
| Insulation | PTFE |
| Mating Cycles | 500 |
| Connector A | 7/16 DIN FEMALE |
| Connector B | N FEMALE |
| Connection type |
|---|
