By 123eWireless

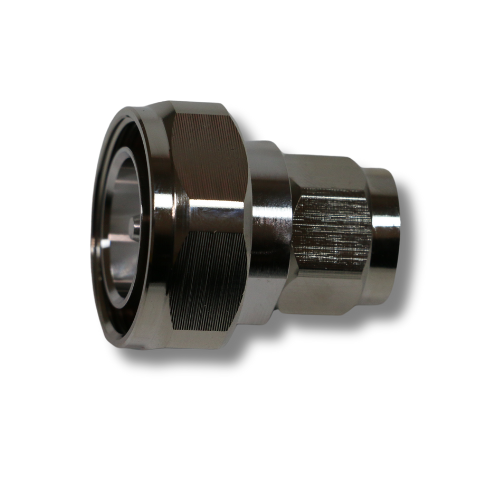

Din (7/16) male to N male RF adapter
Part Number:
123-DMNM-P
Couldn't load pickup availability
Din (7/16) male to N male RF adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications where main launch cables need protection from wear and tear. 123eWireless RF adapters are designed for low loss with maximum mating cycles without degradation.
| CROSS REFERENCE | |
| Alternative To | TA-NMDM |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| PIM | <-155dBc |
| VSWR | ≤1.25 @6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IP67 |
| PHYSICAL SPECIFICATIONS | |
| Insulation | PTFE |
| Mating Cycles | 500 |
| Connector A | 7/16 DIN Male |
| Connector B | N MALE |
| Connection type |
|---|
