By 123eWireless

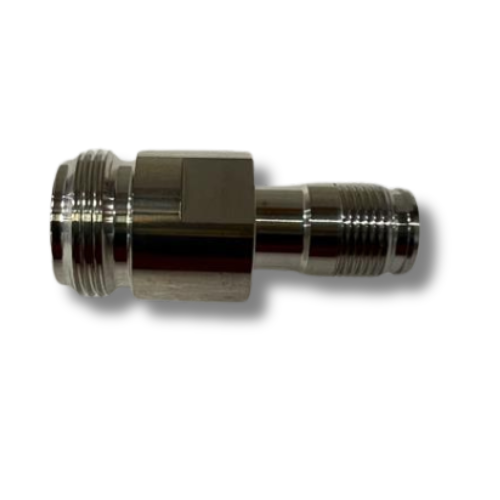

N female to NEX10 female adapter
Part Number:
123-NFXF
Couldn't load pickup availability
|
NEX10™ female to N female rf coaxial adapter |
| CROSS REFERENCE | |
| Alternative To | R191620027 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-8Ghz |
| Impedance | 50 ohm |
| PIM | <-160dBc |
| VSWR | 1.15 @3Ghz, 1.25 @3-6Ghz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40~+155 °C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Insulation | PTFE |
| Connector A | N Female |
| Connector B | NEX10 Male |
| Connection type |
|---|
