By 123eWireless

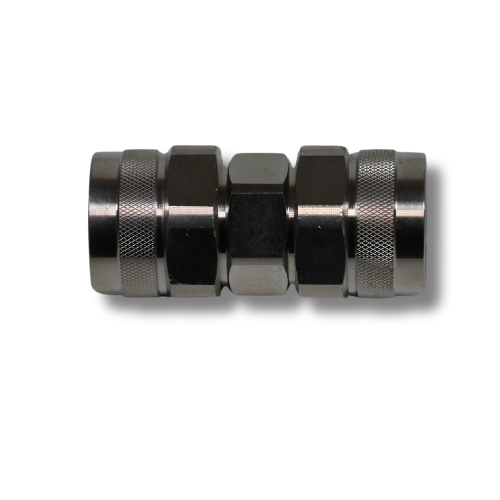

N Male to N Male RF Adapter
Part Number:
123-NMNM
Couldn't load pickup availability
N Male to N Male RF Adapters are used to either change the gender from one connector type to another, to mate different connector types together or as disposable interfaces for test and measurement applications. Low PIM Rated
| CROSS REFERENCE | |
| Alternative To | CA-NMNM, 53S101-S00N5, R/FRFN1014-1 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| Insertion Loss | >0.05 dB |
| VSWR | 1.08 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40 ~+85 ℃ ℃ |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Insulation | PTFE |
| Mating Cycles | 500 |
| Connector A | N Male |
| Connector B | N Male |
| Connection type |
|---|
