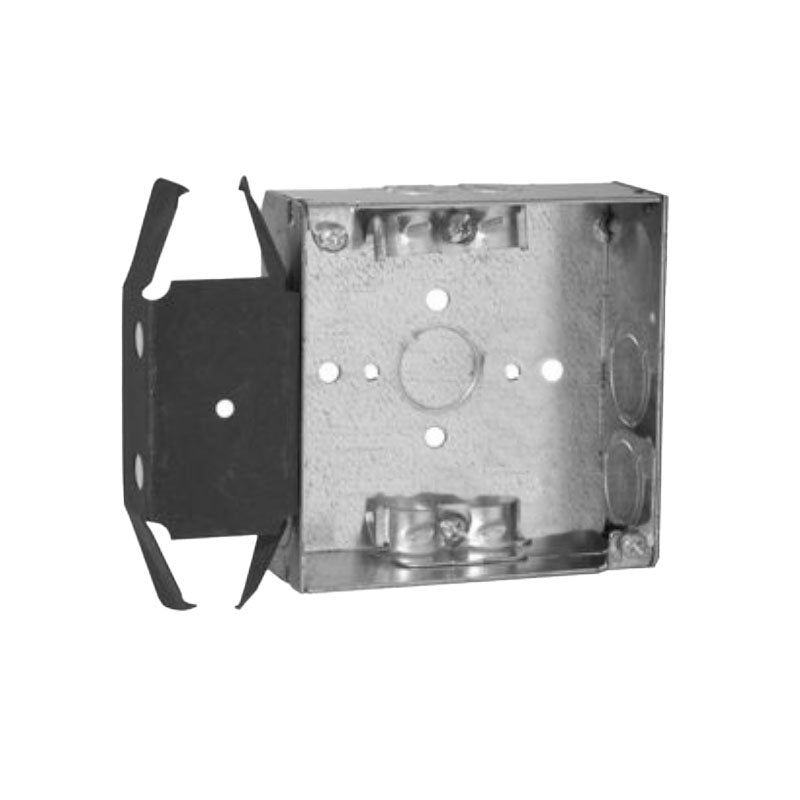

4" Square Steel Electrical Box, Welded, 1-1/2" Deep, (3) 1/2

4" Square Steel Electrical Box, Welded, 1-1/2" Deep, (3) 1/2" Knockouts, (1) 1-2"-3/4" Knockouts (EKO), NMSC Clamps, MS Bracket, Flush

• Features:
  • Shallow 1-1/2 in. deep steel box features built in clamps for {NMSC}
    nonmetallic sheathed cable
  • Welded steel construction with MS bracket that can position box
    on either side of stud and nonmetallic sheathed cable clamps
  • Bracket is a snap to install. Place the bracket on the open side of
    the stud first. Slots in the bracket engage the lip of the stud
  • Material: Steel

  • Acceptable in 2-hour fire rated walls

  • Knockouts allows for design and installation flexibility
  • Combination Phillips/slotted screw heads
• Applications:
  • Bracket: MS Bracket

  • Bracket Setback: Flush

  • Welded

• Specifications:
  • Cubic Capacity: 21 cu. in

  • Length / Depth: 2.115"

  • Width: 5.62"
  • Height: 4.50"

  • Weight: 394.6 g

  • Side KO's: (2) 1/2", (1) TKO
  • Bottom KO's: (1) 1/2"
