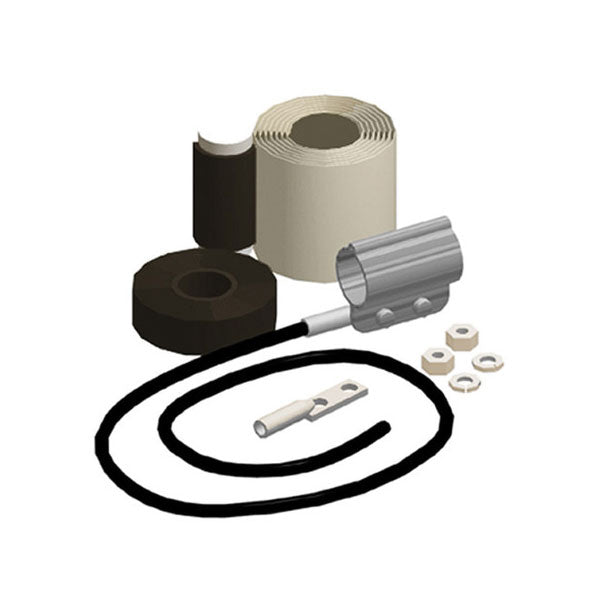

RFS: Ground Kit for E/EP60, 6AWG Grounding Wire 60"
Couldn't load pickup availability
RFS: Ground Kit for E/EP60, 6AWG Grounding Wire 60"
The Standard Grounding Kit is designed to comply with RoHS (EU 2002/95/EC) and CRoHS (China SJ/T11363-2006) directives and has been verified by independent labs to withstand the damaging effects of lightning current. The pre-formed copper strap and associated hardware facilitates a proper attachment to the elliptical waveguide, insuring that the performance of the elliptical waveguide is not being compromised. The 6-gauge, 7 strand copper wire provides the most practical and effective low-inductance transfer of lightning induced current from your elliptical waveguide to your system ground.
| Product Line | Elliptical Waveguide Accessories | ||
| Type of Grounding Kit | Pre-Formed Copper Strap | ||
| Transmission Line Type | E60, EP60 | ||
| Cable Type | Elliptical Waveguide | ||
| Cable Size |
E60 |
||
| Lug Attachment Method | Field Attachable | |
| Lug Style Size | 2-hole Ø 9.5mm (3/8") crimp-on, tin-plated | |
| Grounding Wire Length | m (in) | 1.5 (60) |
| Grounding Wire Size | mm² | 6 AWG (7 strand) |
| Grounding Wire Color | Black | |
| Grounding Body Color | Black | |
| Sealing Class | IP68 |
| Size |
|---|
