By JMA

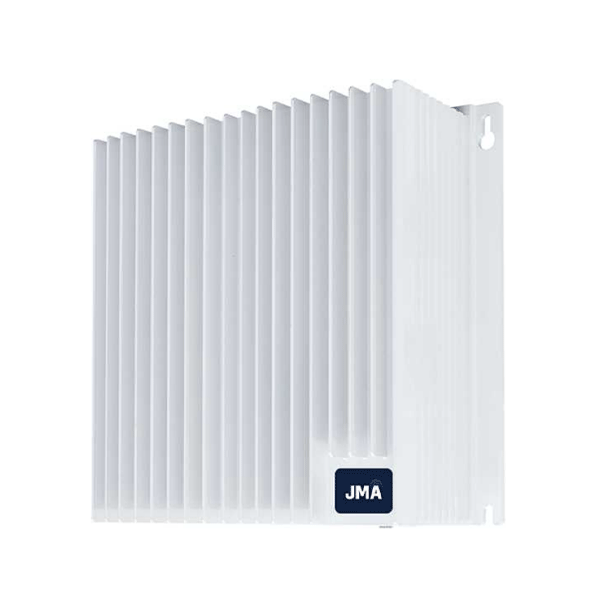

JMA: Medium Power Remote Unit, 6 Band LTE700E, 800-850Plus, 19H, AWS neXt, WDM, 4.3-10
Part Number:
TRM7E8AE19HAWXAT
Couldn't load pickup availability
JMA: Medium Power Remote Unit, 6 Band LTE700E, 800-850Plus, 19H, AWS neXt, WDM, 4.3-10
- Medium Power Remote Units
- Product Type: SISO Remote Unit
- Cooling: Natural Convection
- Connector Type: SC-APC optical connector, 4.3-10(f) RF connector
- Power Class: Medium Power
- Power Consumption: 150W
- Powering Type: AC, DC options available
- Size: ~421.4 x 414 x 145.6mm (16.60 x 16.30 x 5.73in); max volume - heat sinks and connectors included
- Enclosure Rating: IP32 (box) IP66/Type 4 enclosure with optional protection kit
- Supported Bands: 3GPP bands: 12/13/14/17, 5/26, 2/25/70DL, 4/10/66/70UL
JMA equivalent bands: SMR700+FirstNet, SMR800+AMPS, 1900+ AWS-4 DL, AWS-3 full+AWS-4 UL
| Connection type |
|---|
