By Burndy

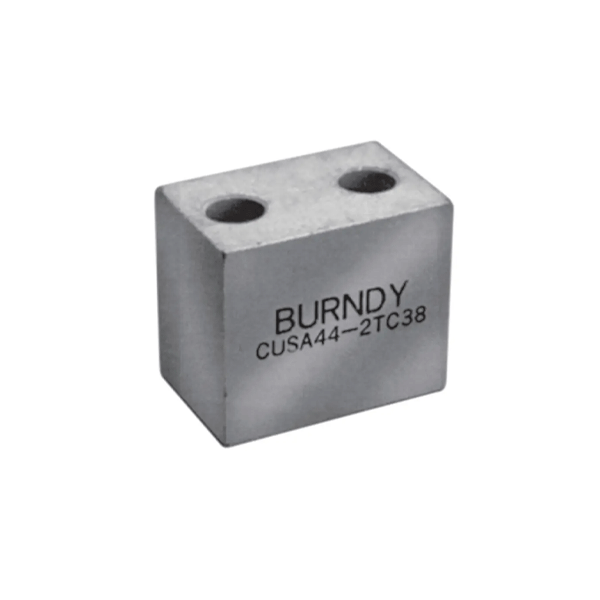

Burndy: 2 Hole Copper Stacking Adapter, 1/2" Stud, 1-3/4" Spacing
Part Number:
CUSA442NTC
Couldn't load pickup availability
Copper, tin plated, 2 hole (1/2" stud - 1-3/4" hole spacing), up to 35kV, used to elevate terminals for vertical parallel conductor accommodates. Adapter length 3.00", width 1.12", height 1.50
- For use on terminals made from copper
- Designed specifically for stacking standard terminals, uses include placing the stacking adapter on the mounting plate and a terminal on top of the stack adapter and bolt down, or placing a stacking adapter on a terminal pad that will be mounted to a bus bar or mounting plate and a terminal on top of the stacking adapter, and bolt down
- May be used with standard NEMA two and four hole terminals, to stack four hole NEMA terminations requires use of two stacking adapters assembled side-by-side
- Stacking adapters are clearly marked
| Stud size | |
|---|---|
| Hole spacing | |
| Hole count | 2 |
