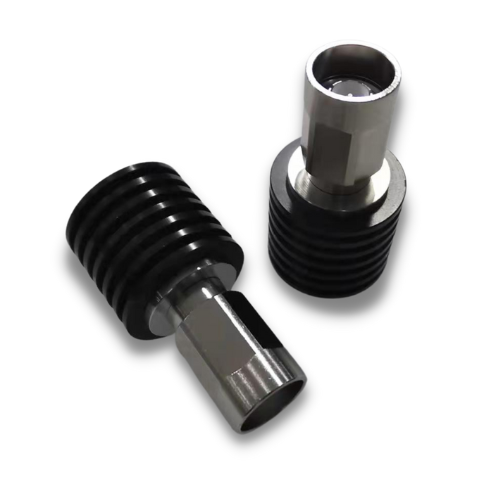

NEX10 Male 10 Watt RF Load Terminator
Part Number:
123-XMT10
Couldn't load pickup availability
The NEX10 Male 10 Watt RF Load Terminator (123-XMT10) is designed to safely terminate radio frequency signals in communication systems. It features a NEX10 male connector, operates across a DC to 6 GHz frequency range, and handles up to 10 watts of average power. With an impedance of 50 ohms and a VSWR of ≤1.3 at 3-6 GHz, it ensures minimal signal reflection. The terminator is built to withstand operating temperatures from -22°F to 149°F and meets IEC 60068 40/085/21 and IP67 weather standards, making it suitable for various environmental conditions.
| CROSS REFERENCE | |
| Alternative To | TK-210BMT |
| ELECTRICAL SPECIFICATIONS | |
| Average Power | 10 Watts |
| Frequency Range | DC-6Ghz |
| Impedance | 50 ohm |
| VSWR | ≤1.3 @ 3-6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -22 to 149F |
| Weather Standard | IEC 60068 40 / 085/ 21; IP67 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Weight | 0.55 lbs |
| Connector A | Nex10 |
| Frequency range | |
|---|---|
| Connection type | |
| Wattage |
