By 123eWireless

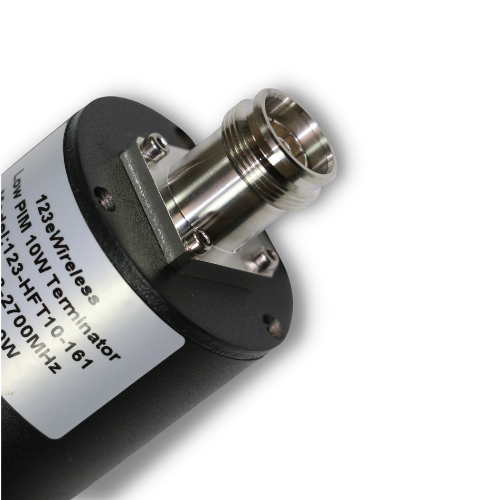

4.3-10 Female 10 Watt Low PIM RF Load Termination
Part Number:
123-HFT10-161
Couldn't load pickup availability
4.3/10 Female Terminator, 10 Watt, -161dBc PIM
| CROSS REFERENCE | |
| Alternative To | T-10-UW-43-F-I6, L-100-64F-T3 |
| ELECTRICAL SPECIFICATIONS | |
| Average Power | 10 Watts |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| PIM | <-161dBc |
| VSWR | ≤1.10(DC-1GHz); ≤1.15(DC1-3GHz) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30C to +65C |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Connector A | 4.3-10 |
| Frequency range | |
|---|---|
| Connection type | |
| Wattage |
