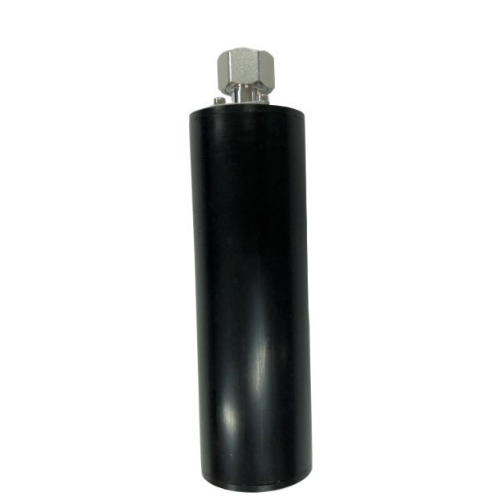

4.3-10 Female Cylinder 60 Watt Low PIM RF Load Termination
Part Number:
123-HFT60C-153
Couldn't load pickup availability
4.3-10 Female Cylinder 60 Watt 698-5925MHz, -153 PIM Low PIM RF Load Termination
| ELECTRICAL SPECIFICATIONS | |
| Average Power | 60 Watts |
| Frequency Range | 698-5925MHz |
| Impedance | 50 ohm |
| PIM | <-153dBc |
| VSWR | ≤1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30C to +65C |
| PHYSICAL SPECIFICATIONS | |
| Gender | Female |
| Connector A | 4.3-10 Female |
| Frequency range | |
|---|---|
| Connection type | |
| Wattage |
