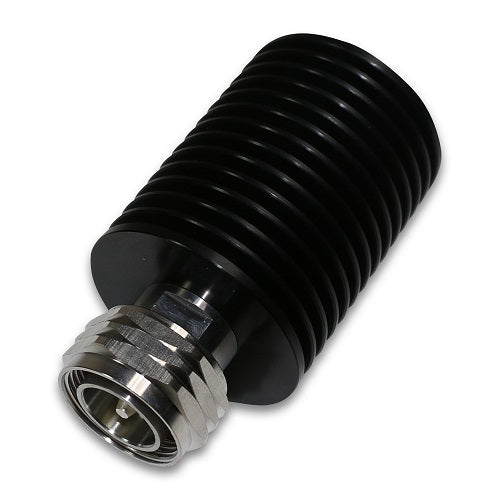

7/16 DIN Male 50 Watt RF Load Terminator
Part Number:
123-DMT50
Couldn't load pickup availability
7/16 DIN Male 50 Watt RF Load Termination also known as a dummy load.
| CROSS REFERENCE | |
| Alternative To | T-50-DM-S |
| ELECTRICAL SPECIFICATIONS | |
| Average Power | 50 Watts |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| Peak Power | 500 Watts |
| VSWR | 1.15 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55C to +125C |
| Weather Standard | IEC 60068 40 / 085/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Weight | 0.85 lbs |
| Connector A | 7/16 DIN |
| Frequency range | |
|---|---|
| Connection type | |
| Wattage |
