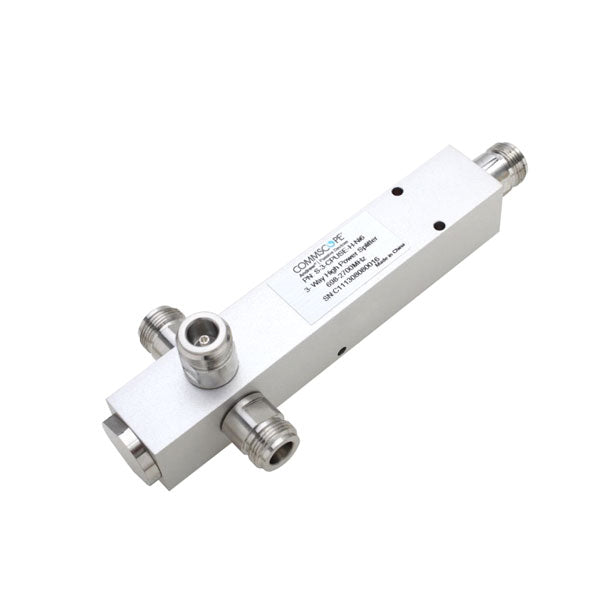

Commscope: Three-way Reactive Power Splitter, 555–2700 MHz

CommScope: Three-way Reactive Power Splitter, 555–2700 MHz, N Female

Electrical Specifications

• Operating Frequency Band: 555 – 2700 MHz
• 3rd Order IMD: -160 dBc
• 3rd Order IMD Test Method: Two +43 dBm carriers
• Average Power, maximum: 300 W
• Impedance: 50 ohm
• Insertion Loss at Frequency Band: 0.2 dB @ 555–2700 MHz
• Peak Power, maximum: 3 kW
• Power Rating, Splitting: 300 W
• Reflected Power, maximum: 300 W
• Return Loss, minimum: 20.8 dB
• Split Loss: 4.8 dB
• VSWR: 1.2:1

Mechanical Specifications

• Coupling Nut Proof Torque: 4.50 N-m | 3.32 ft lb
• Inner Contact Plating: Silver
• Outer Contact Plating: Trimetal
