Kaelus: 600-700/850MHz Diplexer, DC Auto 600-700, Twin Unit
Part Number:
DBCT108F1V92-1
Couldn't load pickup availability
Kaelus: 600-700/850MHz Diplexer, DC Auto 600-700, Twin Unit

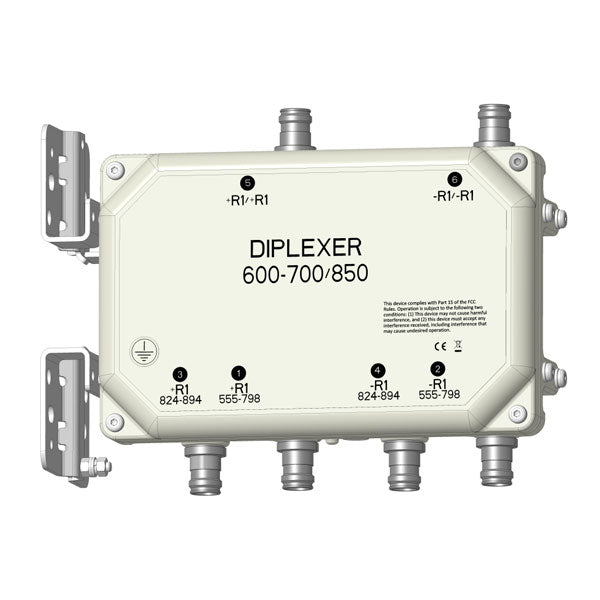

The Kaelus DBCT108 is a bi-directional Diplexer designed to combine 600-700 with 850 technologies, the DBCT108 provides excellent insertion loss and passive intermodulation performance. Bidirectional passage of DC/AISG is provided in this outdoor product.
- Enables antenna/feeder sharing for 600-700 and 850 networks
- Designed and 100% tested for low passive intermodulation
- Autosense of DC allows operation at the bottom or the top of the tower
- Low insertion losses
- Good return loss
| Port Name | 600-700 | 850 | |||||||||||||
| Passband | 555 - 798MHz | 824 - 894MHz | |||||||||||||
| Insertion loss | 0.15dB typical | 0.2dB typical | |||||||||||||
| Return loss | 23dB typical | ||||||||||||||
| EVM | ≤0.5% across any 10MHz | ≤0.5% across any 20MHz | |||||||||||||
| Group delay variation | 7.5ns typical over any 10MHz | 10ns typical over any 20MHz | |||||||||||||
| Absolute group delay | 7.5ns typical | 17.5ns typical | |||||||||||||
| Maximum input power | 120W (average) / 1200W (PEP) | 120W (average) / 1200W (PEP) | |||||||||||||
| Phase linearity over any 10MHz | 2° typical, 10 °maximum | ||||||||||||||
