Kaelus: Twin Diplexer 1900/AWS3-4

Kaelus: Diplexer 1900/AWS3-4

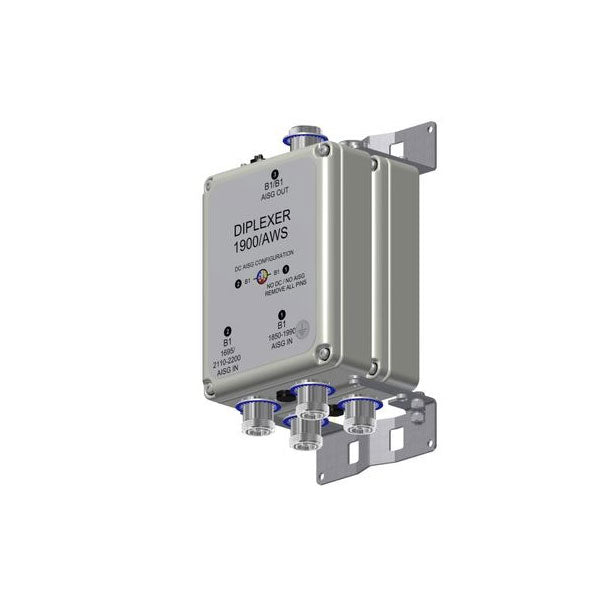

Designed to combine 1900 and AWS technologies the Kaelus DBC0051 provides a low loss combiner with excellent insertion loss and passive inter-modulation performance. The DBC0051 is AWS 3 / AWS 3U and AWS 4 ready

• AWS 3 / AWS 3U and AWS4 ready
• Enables the sharing of antennas by 1900 and AWSnetworks
• Multiple DC bypass/AISG configurations fieldsettable
• Offers low insertion loss and high isolation
• Low passive IM performance
• Wall or mast mounting
• Passband:
  • B1 (1900): 1850-1990MHz
  • B1 (AWS): 1695-1780MHz / 2110–2200MHz
• Insertion Loss: 0.2dB typical
• Group delay variation: 10ns maximum (in any 3.84MHz band)
• Maximum Input Power:
  • B1 (1900): 250W (average) / 3kW (PEP)
  • B1 (AWS): 250W (average) / 3kW (PEP)
• Attenuation:
  • B1 (1900): 50dB minimum, 70dB typical @ AWS
  • B1 (AWS): 50dB minimum, 57 dB typical @ 1900
• Impedance: 50Ohms
• Return Loss: 22dB minimum, 24dB typical
• Intermodulation products: -161dBc typical / -155dBc maximum all ports with 2 x 20W carriers
• Isolation: 50dB
