Kaelus: Diplexer 1900_AWS/WCS DC/AISG on AWS/WCS Path
Part Number:
DBC0114F1V1-2
Couldn't load pickup availability
Kaelus: Diplexer 1900_AWS/WCS DC/AISG on AWS/WCS Path

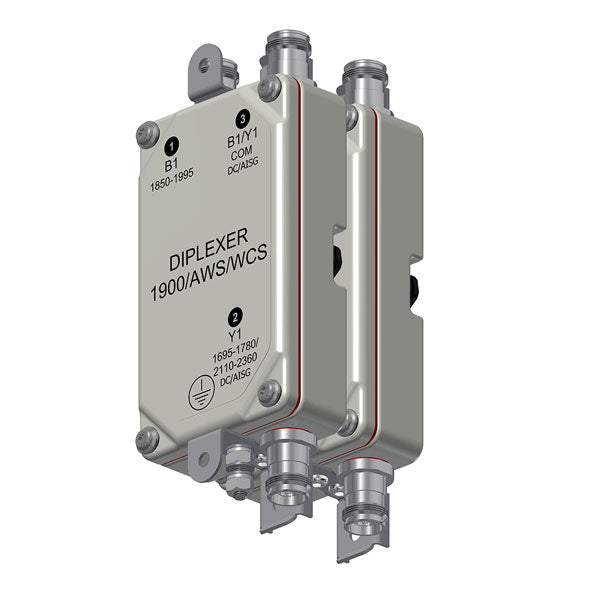

The Kaelus DBC0114 is a bi-directional Diplexer, designed to combine or split 1900 and AWS/WCS bands. The DBC0114 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
- Enables antenna sharing for 1900 and AWS/WCS networks
- AWS-3 ready
- Offers low insertion loss
- Low passive IM performance
- Wall or mast mounting
- Single and twin models available
- 4.3-10 connectors standard
| Band Name | 1900 | AWS/WCS | |||||||||||||
| Passband | 1850-1995MHz | 1695-1780MHz / 2110–2360MHz | |||||||||||||
| Insertion loss | 0.35dB typical | ||||||||||||||
| Return loss | 20dB minimum, 24dB typical | ||||||||||||||
| Absolute group delay | 5ns typical | ||||||||||||||
| Maximum input power | 100W (average) / 1000W (PEP) | 100W (average) / 1000W (PEP) | |||||||||||||
| Isolation | 40dB typical | 40dB typical | |||||||||||||
AT&T SKU:
ANT.16218
| Connection type |
|---|
