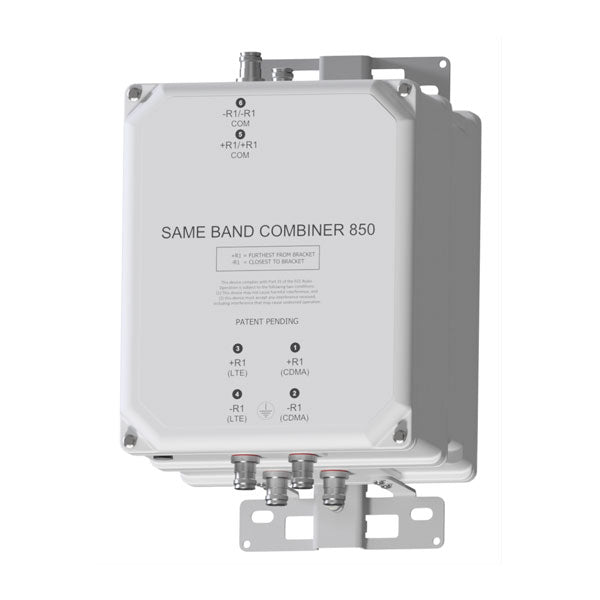

Kaelus: Twin Same Band Combiner, CDMA850 A'/B' + LTE700/LTE8

Part Number: DBC0134F1V72-1
$3,420.65 USD
$3,420.65 USD

Kaelus: Twin Same Band Combiner, CDMA850 A'/B' + LTE700/LTE850 A/B-Bands

Designed to combine LTE700/LTE850 radio(s) with legacy CDMA850 equipment, the Kaelus DBC0134 is a low loss twin combiner with excellent insertion loss and passive inter-modulation performance.

  • Combines/splits legacy CDMA850 & LTE700H/LTE850 A/B-bands
  • Supports 10MHz LTE expansion in 850MHz A and/or B-bands
  • Allows LTE700/LTE850 & CDMA routing to separate antennas
  • Ideal for use with dual band LTE700 & LTE850 radios
  • Supports CDMA channels placed in either A' or B'
  • Extremely close (zero guardband) spacing
  • Designed for low passive inter-modulation
  • DC/AISG autosensing with LED status
  • Low insertion loss
Band Name R1 (CDMA) R1 (LTE)
Passband A' (CH691), B' (CH738/CH779 or CH770) LTE700, LTE850 (746-844.5, 869-889.5MHz)
Insertion loss 1.1dB typical, 1.9dB maximum 746-798MHz: 0.45dB typical, 0.55dB maximum
824-844.5, 869-889.5MHz: 1.0dB typical, 1.9dB maximum
Return loss 24dB typical, 20dB minimum 24dB typical, 20dB minimum
EVM 3% typical, 7% maximum 0.5% typical, 2% maximum
Group delay variation 250ns maximum 270ns maximum
Absolute group delay 120ns typical (mid-band
350ns maximum (band-edge)		 75ns typical (mid-band)
300ns maximum (band-edge)
Maximum input power 80W (average) / 800W (PEP) 160W (average) / 1600W (PEP)

$3,420.65 USD
$3,420.65 USD
Connection type 4.3-10 Female
