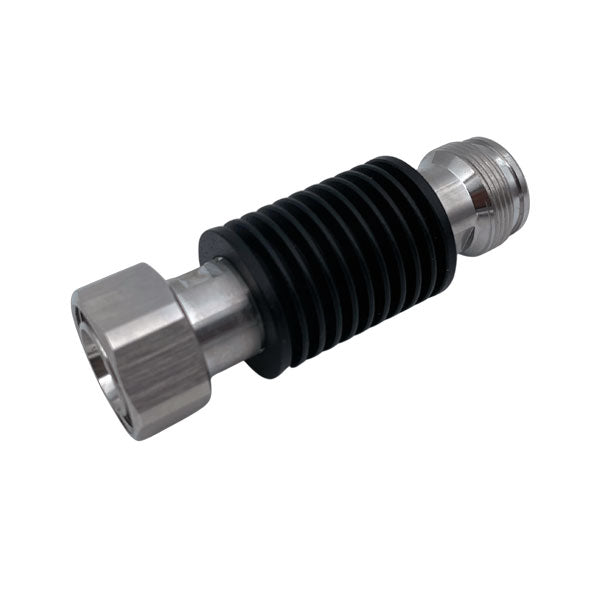

Microlab: 10 dB UWB Resistive Attenuator, 5W, 4.3-10 connector, DC to 6 GHz, Indoor
The AX series attenuators are coaxial devices designed for wireless applications across an ultra-wideband frequency range of DC to 6 GHz, featuring low VSWR. They are offered in average power ratings of 2W and 5W and are fitted with either 4.3-10 or N-Type connectors.
The AX series provides a variety of attenuation values, allowing for greater design flexibility. These units are exceptionally rugged and deliver consistent performance across the operating range without being affected by changes in ambient temperature.
- Resistive Attenuators for All Wireless Applications up to 6GHz
- 5W Power Rating
- 4.3-10 Connector
- RoHS Compliant
- Highly Reliable
| Frequency: | DC to 6.0GHz | |
| Attenuation: | 10 dB | |
| Accuracy: | ±0.8 dB | |
| Power Rating: | 5W | |
| Peak Power | 500 W | |
| Impedance: | 50 nominal | |
| VSWR max: | <1.25:1 | |
| Temperature Range: | -40°C to +55°C, Indoor | |
| Finish/Material: | RoHS Compliant | |
| Connector: | 4.3-10(m-f), Triplate | |
