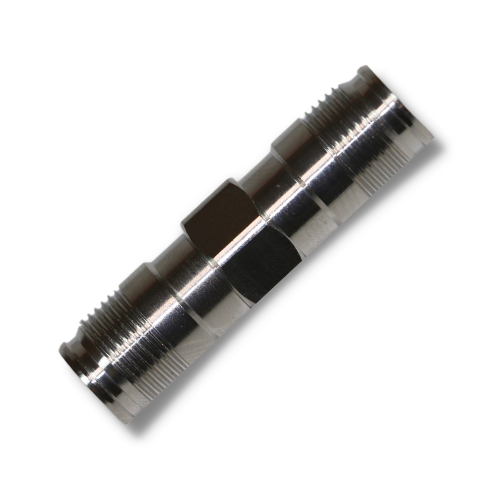

NEX10 Female to NEX10 Female adapter
Part Number:
123-XFXF
Couldn't load pickup availability
NEX10™ female to NEX10™ female rf coaxial adapter is used as a disposable interface for test and measurement applications.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| Insertion Loss | >0.05 dB |
| PIM | ≤ -168 dBc |
| Return Loss | -26.44 dB |
| VSWR | 1.1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to +155°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 60068 55/155/21 |
| PHYSICAL SPECIFICATIONS | |
| Mating Cycles | 100 |
| Connector A | NEX10 Female |
| Connector B | NEX10 Female |
| Connection type |
|---|
