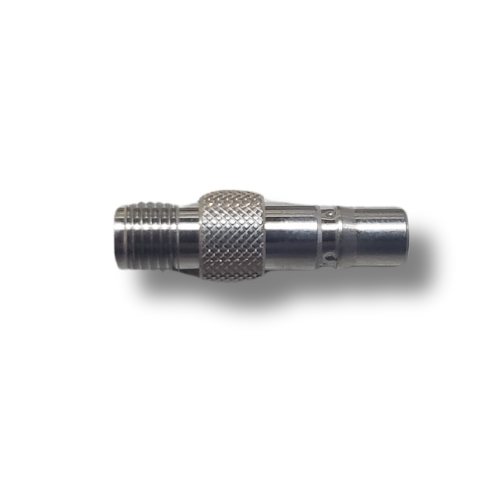

QMA Female to SMA Female RF Adapter
Part Number:
123-QMAFSMAF
Couldn't load pickup availability
QMA female to SMA female RF Adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications.
| CROSS REFERENCE | |
| Alternative To | 28K132-K00N5, 3809, 242262 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50Ω |
| Insertion Loss | < 0.05 dB |
| VSWR | < 1.10 |
| PHYSICAL SPECIFICATIONS | |
| Inner Conductor | Brass, Gold Plating |
| Insulation | PTFE |
| Outer Conductor | Brass, Copper/Tin/Zinc Plating |
| Connector A | QMA Female |
| Connector B | SMA Female |
| Connection type |
|---|
