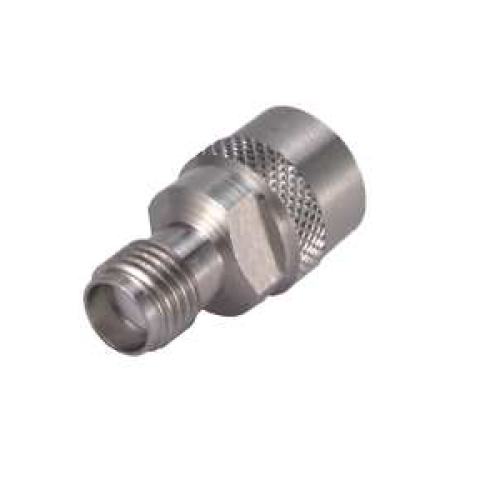

SMA Female to SMA Male - Quick Disconnect RF Adapter
Part Number:
123-SMAFSMAMQ
Couldn't load pickup availability
SMA Quick-mate plug (male) / SMA jack (female). Quick Mate pluggable without tightening coupling mechanism. Ideal for Test & Measurement applications.
| CROSS REFERENCE | |
| Alternative To | 474087, LCAD9774, 33_SMA-Q50-0-4/1-9_N |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-5GHz |
| Impedance | 50Ω |
| Return Loss | ≥ 29 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -65 °C to 165 °C |
| PHYSICAL SPECIFICATIONS | |
| Insulation | PTFE |
| Mating Cycles | 500 |
| Outer Conductor | Copper Beryllium Alloy |
| Weight | 0.0044 Kg |
| Connector A | SMA jack (female) |
| Connector B | SMA Quick-mate plug (male) |
| Connection type |
|---|
