By 123eWireless

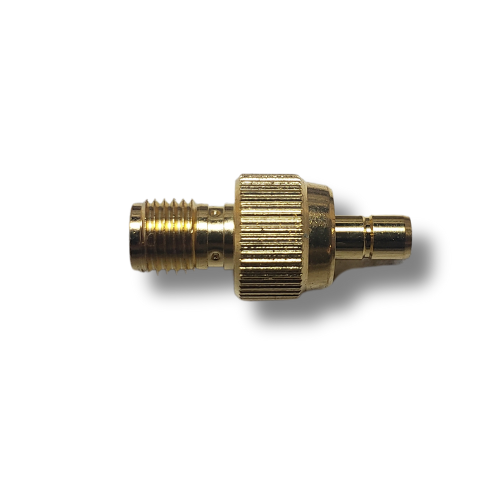

SMA Female to SMB Female RF Adapter
Part Number:
123-SMAFSMBF
Couldn't load pickup availability
SMA female (jack) to SMB female (jack) RF Adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications.
| CROSS REFERENCE | |
| Alternative To | SM2062, LCAD30009, 433112 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50Ω |
| Inner Construction | Brass, Gold Plating |
| VSWR | < 1.10 |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | < 0.05 dB |
| PHYSICAL SPECIFICATIONS | |
| Insulation | PTFE |
| Outer Conductor | Brass, Copper/Tin/Zinc Plating |
| Connection type |
|---|
