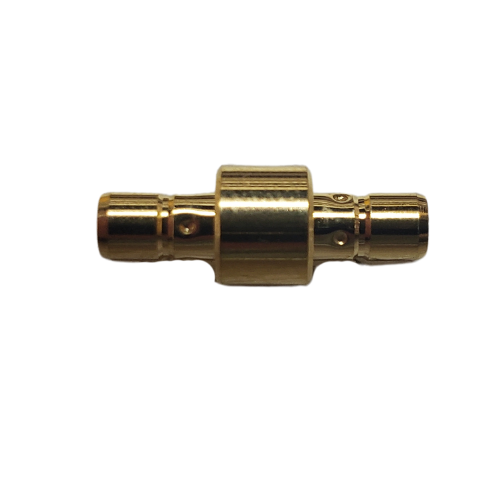

SMB female to SMB female RF Adapter
Part Number:
123-SMBFSMBF
Couldn't load pickup availability
SMB female to SMB female RF Adapters are used to either change the gender from one connector type to another, to mate different connector types together, or as disposable interfaces for test and measurement applications.
| CROSS REFERENCE | |
| Alternative To | 142245, PE9116 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Impedance | 50Ω |
| Insertion Loss | < 0.05 dB |
| VSWR | < 1.10 |
| PHYSICAL SPECIFICATIONS | |
| Inner Conductor | Brass, Gold Plating |
| Insulation | PTFE |
| Outer Conductor | Brass, Gold Plating |
| Connection type |
|---|
