By 123eWireless

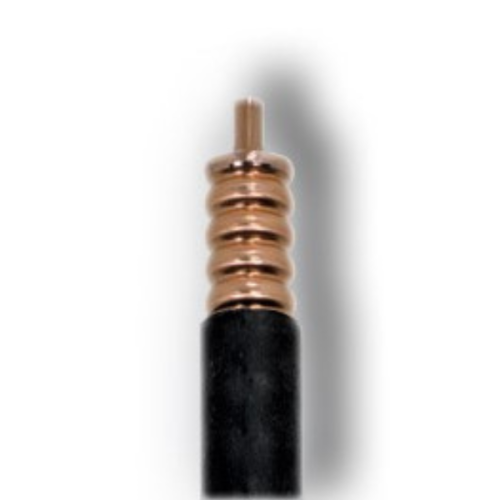

1/2" Flexible Coaxial Cable Plenum, Black, Per Foot
Part Number:
123-1P-50-BK
Couldn't load pickup availability
1/2" flexible annular cable is ideal for Low PIM applications where cable flexibility is necessary. This indoor plenum rated cable is ideally suited for DAS applications including raised flooring systems and air handling ducts.
- Sold by Foot
| CROSS REFERENCE | |
| Alternative To | HL4RPV-50, AL4RPV-50, ICA12-50JPL, AP6012J50 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 3 GHz |
| Impedance | 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20C to +80C |
| Weather Standard | IEC 60068 40/ 085 / 21 |
| PHYSICAL SPECIFICATIONS | |
| Bend Radius Single | 125mm |
| Flexibility | Standard |
| Inner Conductor | Copper clad alumin |
| Outer Conductor | Ring corrugated copper |
| Jacket Color | Black |
| Outer Diameter | 1/2in |
| Size | |
|---|---|
| Color-pattern |
|
