By Milbank

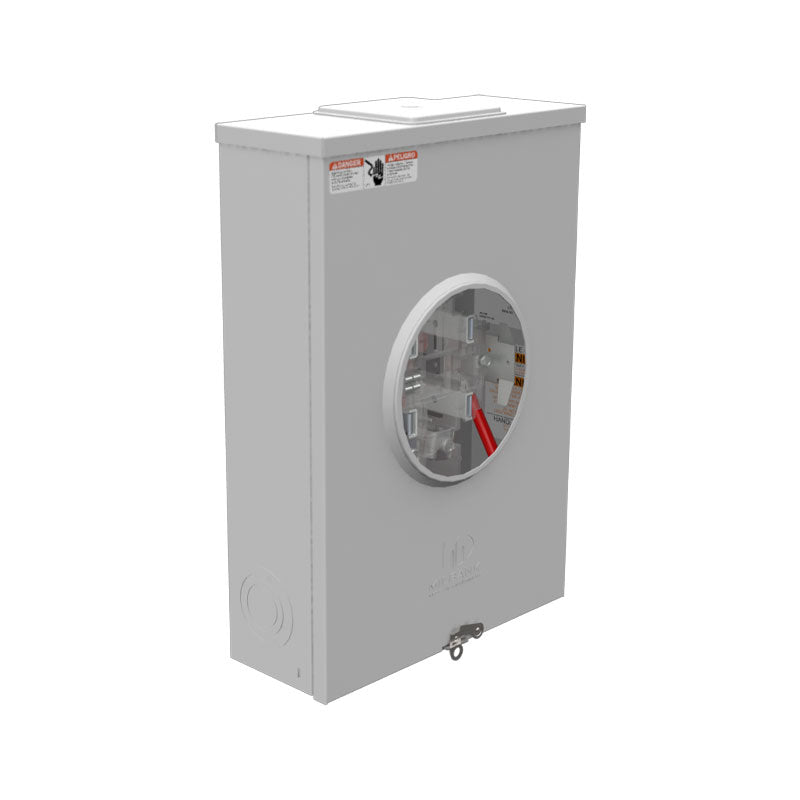

Milbank: Meter Socket Ringless Single Position
Part Number:
U9551-X-QG-HSP
Couldn't load pickup availability
5 Terminal Ringless Large Closing Plate Quadplex Ground Lever Bypass Stainless Steel Hasp
- Application: Meter Socket
- Standard: UL Listed; Type 3R
- Voltage Rating: 600 Volts Alternating Current
- Amperage Rating: 200 Continuous Ampere
- Phase: 1 Phase
- Frequency Rating: 60 Hertz
- Size: 4.844 L x 13 W x 19 H
- Number of Main Breakers: 0
- Main Breaker Size: No Main Breaker
- Cable Entry: Overhead or Underground
- Terminal: Lay in
- Insulation: Glass Polyester
- Mounting: Surface Mount
- Material: G90 Galvanized Steel with Powder Coat Finish
- Number of Jaws: 5 Terminal
- Bypass Provision: Lever Bypass
- Number of Meter Positions: 1 Position
- Equipment Ground: Quadplex Ground
- Hub/Closing Plate: Large Closing Plate
- Line Side Wire Range: 6 AWG - 350 kcmil
- Load Side Wire Range: 6 AWG - 350 kcmil
- Number Of Receptacles:0
- Height: 19 IN
- Length: 4.844 IN
- Width: 13 IN
