CCI: RET Kit for Hex Port Antennas

CCI’s HexPort antenna to remote radio unit (RRU) AISG Cable Kits provides all the required cables for the successful deployment of CCI’s HexPort antennas and any CCI antennas with three Remote Electrical Tilt (RET) actuators. All of the control cables included in the kit are AISG 1.1 and AISG 2.0 compliant.

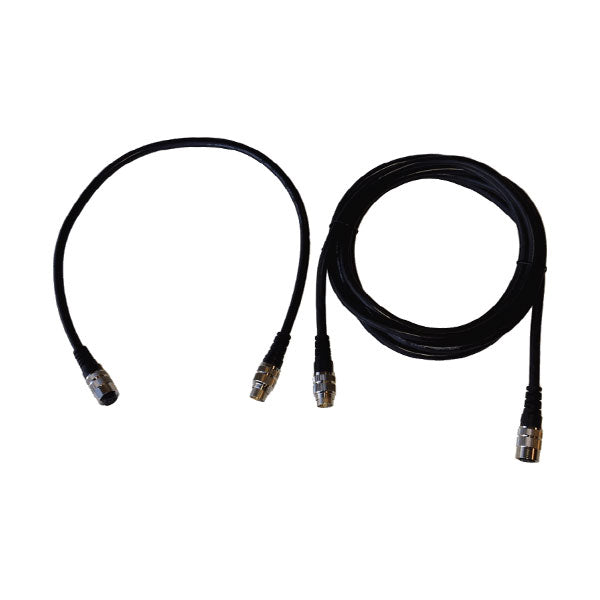

AISG control of the HexPort's four high band ports covering 1710-2360 MHz and two low band ports covering 698-894 MHz can be configured in several ways. Depending on your requirements, a single RRU can be designated as the AISG controller whereby it controls both the high band ports and low band ports of the antenna. Another configuration will allow a low band RRU to control the low band antenna ports and a high band RRU to control the high band ports of the antenna. The AISG cable kit provides all the necessary cables to enable both of the above configurations. The 10 foot AISG cables enable connection from the RRU to the antenna, while the 18” AISG cables are for daisy chaining between RET actuators.

• AISG 1.1 and 2.0 compliant control cables
• IP67 outdoor ingress protection (when properly mated)
• Flame retardant per UL 1581 VW-1
• Matte polyurethane jacket (Black)
• Connectors 2 x 8 pin (male/female) per IEC 60130-9
• Tinned copper braid shield material
