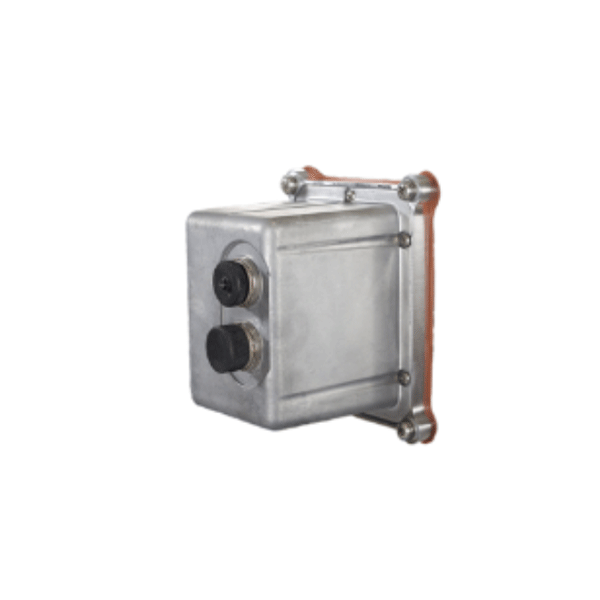

JMA: Remote Electrical Downtilt Control Motor, AISG V2.0

JMA: Remote Electrical Downtilt Control Motor, AISG V2.0

• Electrically controls the antenna RF tilt
• Low power consumption @ idle stage
• Supports AISG v2 protocol only
• AISG RS485 male/female connector
• Supports daisy chaining
• Input/supply voltage: 10-30 volts
• Power consumption: 2W max standby, 10W max active motor
• AISG connector (RS485 interface + DC): 8 PIN female & 8 pin male AISG C091 connectors
• RET-200 Master Controller: PCU-1000 AISG v2 only
• RET-200 dimension , in. (mm): 3.4/ 2.4/ 1.3 (86.3 /60.9/ 33.0)
• AISG connector torque: Min. .5 Nm to max 1.0 Nm (hand pressure & finger tight connector)
• Mounting location: Back of antenna
