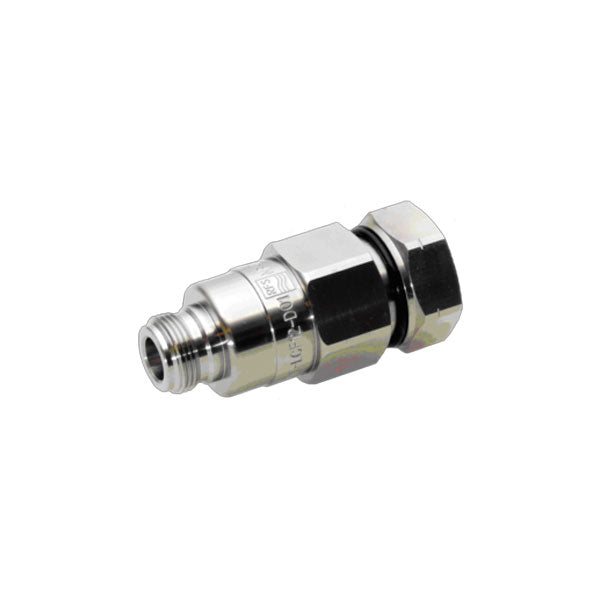

RFS: N Female Connector for 1/2" Coaxial Cable, OMNI FIT Premium
- Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
- Two-piece design i.e. visual inspection of interlocking leads to improved installation security
- OMNI FIT™ concept i.e. streamlined order management and reduced stock level
- Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
- Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
- Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
- RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
|
General Specifications
|
| Transmission Line Type |
|
Coaxial Cable |
| Cable Size |
|
1/2 |
| Cable Type |
|
Foam Dielectric |
| Model Series |
|
LCF12-50 Series, ICA12-50 Series, RCF12-50 Series |
| Connector Interface |
|
N |
| Connector Type |
|
OMNI FIT™ PREMIUM Straight |
| Sealing Method |
|
Polymer claw + 360° Compression |
| Gender |
|
Female |
|
|
Electrical Specifications
|
| Nominal Impedance, ohms |
Ohm |
50 |
| 3rd Order IM Product @ 2x20 Watts |
dBc |
-156 ; typical -162 |
| Maximum Frequency |
GHz |
3.7 |
| VSWR, Return Loss |
VSWR (dB) |
0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.7 GHz: 1.03 (36.6)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7) |
|
|
Mechanical Specifications
|
| Plating Outer/Inner |
|
NiTin/Silver |
| Length |
mm (in) |
57.1 (2.25) |
| Outer Diameter |
mm (in) |
26 (1.02) |
| Inner Contact Attachment |
|
Basket |
| Outer Contact Attachment |
|
360° clamping |
|
|
Accessories
|
| Wrench size front |
mm (in) |
27 (1-1/16) |
| Wrench size rear |
mm (in) |
27 (1-1/16) |
| Trimming Tool |
|
TRIM-SET-L12-D01
TRIM-LCF12-D01-A |
|
|
Testing and Environmental
|
| Waterproof Level |
|
IP68 |
|
