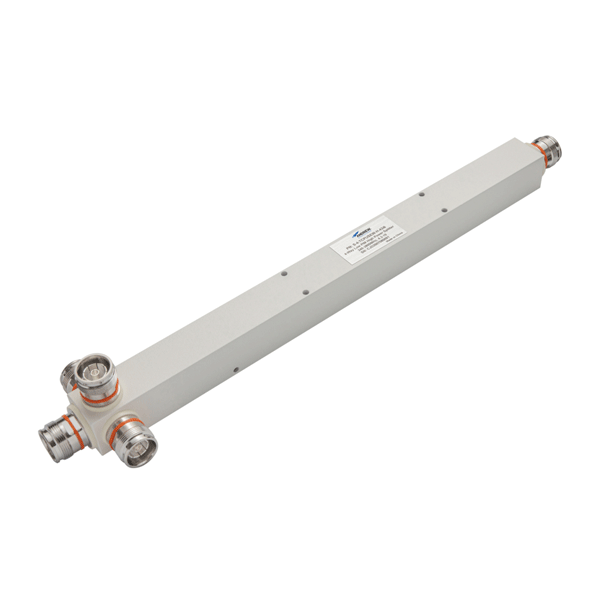

CommScope: Multiband Four-way Low PIM Reactive High Power Splitter, 340–3800 MHz

CommScope: Multiband Four-way Low PIM Reactive High Power Splitter, 340–3800 MHz

• Device Type Splitter
• Application Indoor/Outdoor
• Color White
• Inner Contact Plating Silver
• Interface 4.3-10 Female
• Outer Contact Plating Trimetal
• 3rd Order IMD -165 dBc
• 3rd Order IMD Test Method Two +43 dBm carriers
• Insertion Loss at Frequency Band 0.4 dB @ 340–2700 MHz    |   0.6 dB @ 2700–3800 MHz
• Average Power, maximum 300 W
• Impedance 50 ohm
• Operating Frequency Band 340 – 3800 MHz
• Peak Power, maximum 3 kW
• Power Rating, Splitting 300 W
• Reflected Power, maximum 300 W
• Split Loss 6 dB
