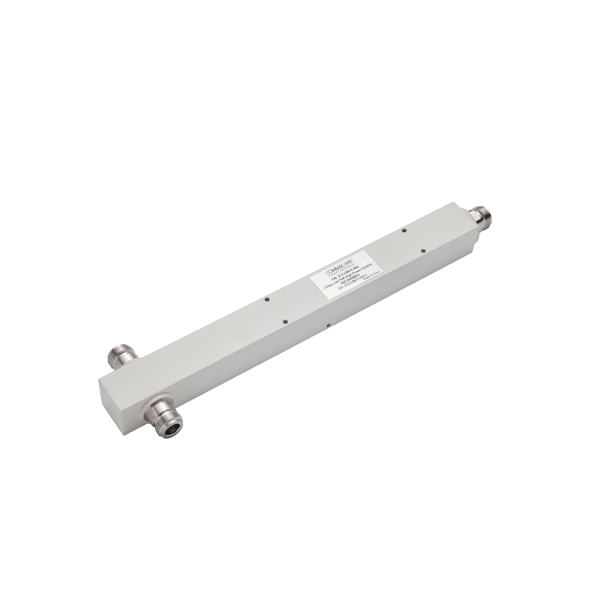

CommScope: Ultra Wideband Two-way Low PIM Reactive High Power Splitter, 555–6000 MHz, N Ports

CommScope: Ultra Wideband Two-way Low PIM Reactive High Power Splitter, 555–6000 MHz, N Ports

• Device Type Splitter
• Application Indoor/Outdoor
• Color White
• Inner Contact Plating Silver
• Interface N Female
• 3rd Order IMD -163 dBc
• 3rd Order IMD Test Method Two +43 dBm carriers
  Insertion Loss at Frequency Band 0.2 dB @ 555–2700 MHz    |   0.3 dB @ 2700–6000 MHz
• Return Loss, minimum 19.1 dB
• Average Power, maximum 300 W
• Impedance 50 ohm
• Operating Frequency Band 555 – 6000 MHz
• Peak Power, maximum 3 kW
• Power Rating, Splitting 300 W
• Reflected Power, maximum 300 W
• Outer Contact Plating Trimetal
