By Microlab

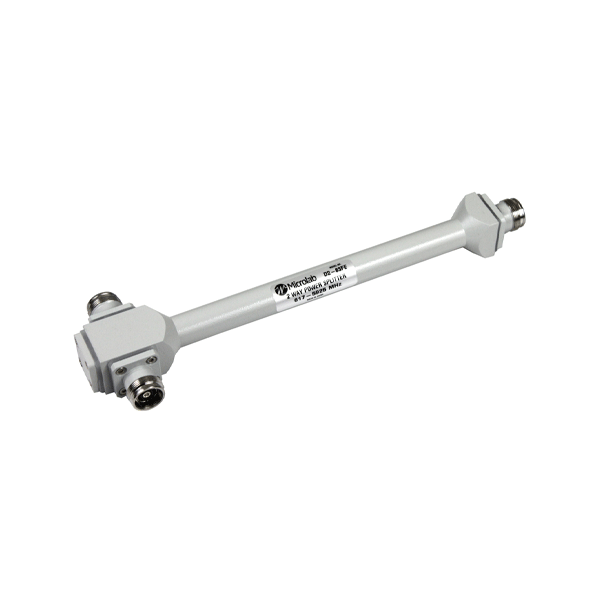

Microlab: 2-way Reactive Splitter, 617-5925MHz, 300W, -161dBc, 4.3-10 Ports
Part Number:
D2-83FE
Couldn't load pickup availability
Microlab: 2-way Reactive Splitter, 617-5925MHz, 300W, -161dBc, 4.3-10 Ports
| Frequency: | 617 – 5925 MHz |
| Power: | 300W avg, 1kW peak |
| Split Loss: | 3 dB |
| VSWR: | 1.20:1 max. @ 617-2700 MHz |
| 1.20:1 max. @ 3100-4200 MHz | |
| 1.30:1 max. @ 4900-5925 MHz | |
| PIM: | -165 dBc (-122 dBm) typ. <-161 dBc (-118 dBm) |
| (test with 2 x +43 dBm tones) | |
| Connector: | 4.3-10 (f) |
| Ingress Protection: | IP67 |
| Frequency range | |
|---|---|
| Connection type |
