By 123eWireless

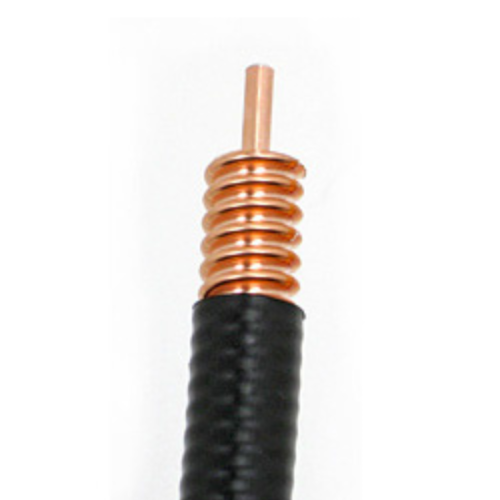

3/8" Superflexible Corrugated Cable, Black, Per Foot
Part Number:
123-38SF
Couldn't load pickup availability
3/8" Superflexible corrugated cable is ideal for Low PIM applications where cable flexibility is necessary. This general-purpose outdoor cable is ideally suited for SMALL CELL and DAS high-power applications connecting antennas and radios.
| CROSS REFERENCE | |
| Alternative To | SCF38-50J |
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | ≥120 dB |
| Capacitance | 82 pF/m |
| Frequency Range | 10.2 GHz |
| Impedance | 50 Ohm |
| Inductance | 0.205 uH/m |
| Peak Power | 13.2 kW |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55C to +85C |
| PHYSICAL SPECIFICATIONS | |
| Bend Radius Single | 25.0mm (0.984in) |
| Flexibility | Super Flexible |
| Inner Conductor | Copper-Clad Aluminum |
| Outer Conductor | Helically Corrugated Copper |
| Jacket Color | Black |
| Jacket Material | PE jacket, UV resistant |
| Outer Diameter | 0.421 ±0.006 in |
| Size | |
|---|---|
| Color-pattern |
|
If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible.
