By Rosenberger
Rosenberger: RF Connector Adapter
Part Number:
60BK566-S230N1
Contact Us for Pricing & Availability
Couldn't load pickup availability

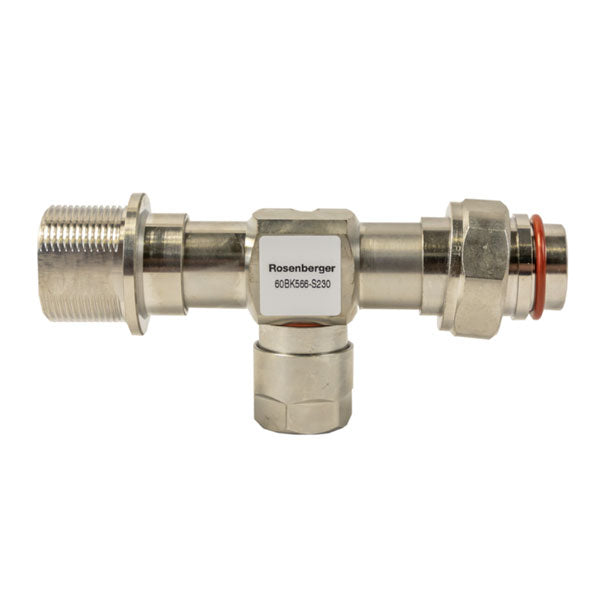

Rosenberger: Surge Arrestor Bulkhead 7/16 Din Female to Male 698 to 2700 Mhz. with d/c pass 230 volt capsule
- Nom. DC spark over voltage: 230V
- Residual voltage (20kA 8/20 µs): ≤ 900 V
- Residual voltage (4kV 1.2/50µs, 2kA 8/20 µs): ≤ 700 V
- Residual energy (4kV 1.2/50µs, 2kA 8/20 µs): ≤1.6 mJ
- Power handling (20 °C, sea level, VSWR 1.0): 5000 W
- Gas capsule: 53ZB01-230
Contact Us for Pricing & Availability
| Frequency range | |
|---|---|
| Connection type |
