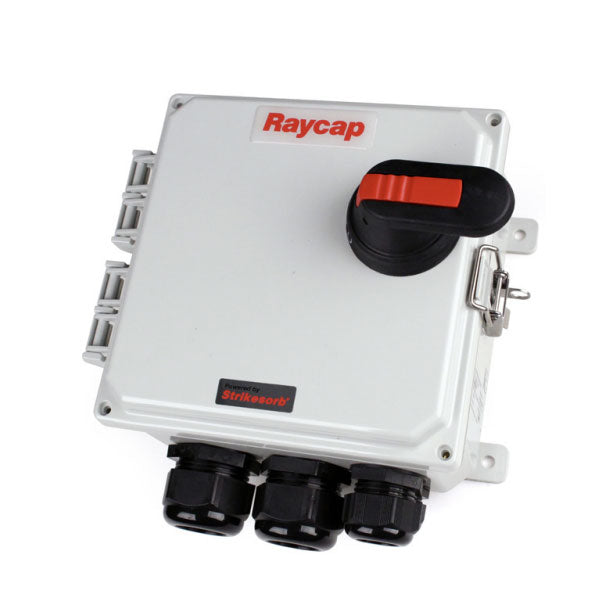

RayCap: AC Disconnect with Intergrated Surge Protection for

RayCap: AC Disconnect with Intergrated Surge Protection for Small Cell Radio Heads

Features:

• Four 7amp din rail mounted branch breakers to supply 4-Pico Small Cell Radios
• Employs the Strikesorb 30-A Surge Protective Device (SPD)
• The Strikesorb 30-A is a Class II SPD, certified by VDE per the IEC 61643-11
  standard as suitable for installation in areas where induced lightning exposure
  is expected
• Strikesorb 30-A is able to withstand induced surge currents of up to 60kA (8/20)
• Provides low let through / clamping voltage - as it does not employ spark gaps
  or other switching elements
• Strikesorb offers unique protection levels for wireless and small cell applications
• Comes with two compression fittings that can be replaced with 1.25" NPT conduit fittings and one compression fitting that can be replaced with 1" conduit fitting
• Pole mount bracket facilitates mounting up to 4" diameter pole using existing clamps. Can also be banded to any diameter pole. Center mount holes (5/8") for center pole mount
