By 123eWireless

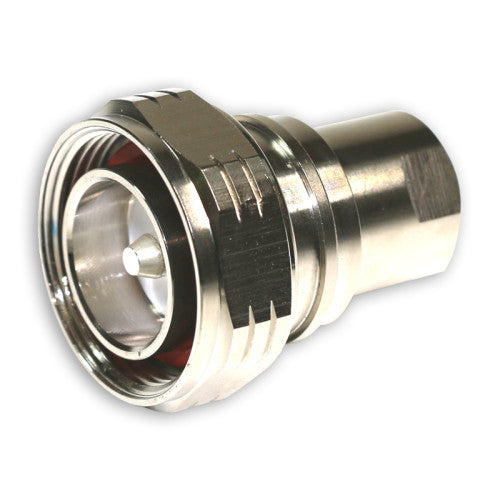

7/16 DIN Male 2 Watt RF Load Terminator
Part Number:
123-DMT2
Couldn't load pickup availability
7/16 DIN Male 2 Watt RF Load Termination also known as a dummy load.
| CROSS REFERENCE | |
| Alternative To | 65716-50-0-3, L-2-DM-02 |
| ELECTRICAL SPECIFICATIONS | |
| Average Power | 2 Watts |
| Frequency Range | DC-3Ghz |
| Impedance | 50 ohm |
| VSWR | ≦1.08(28dB) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55C to +125C |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Weight | 0.20 kg |
| Connector A | 7/16 DIN |
| Frequency range | |
|---|---|
| Connection type | |
| Wattage |
