By 123eWireless

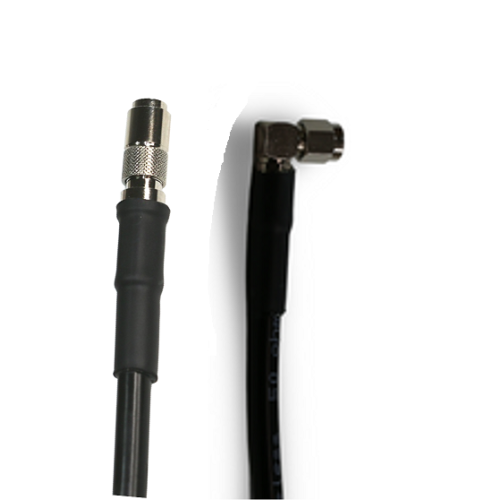

1.0/2.3 Male to SMA Right Angle Male LMR 240 RF Jumper, 18ft
Part Number:
123-141023MSMAR-18
Couldn't load pickup availability
1.0/2.3 Male to SMA Right Angle Male LMR 240 RF Jumper, 18ft
| CROSS REFERENCE | |
| Alternative To | LMR240, CNT-240 |
| ELECTRICAL SPECIFICATIONS | |
| Attenuation | 7.0 dB/100ft @ 900 MHz =(Nom) |
| Frequency Range | 698-2200 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | ≤-1.29 dB |
| Return Loss | ≤-24 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C To +85°C |
| Weather Standard | IP 67 |
| PHYSICAL SPECIFICATIONS | |
| Coax Cable Type | Low Loss 240 (LMR240 equivalent) |
| Connector A | 1.0/2.3 Male |
| Connector B | SMA Right Angle Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 0.24 (in) |
| Type | |
|---|---|
| Size | |
| Connection type |
