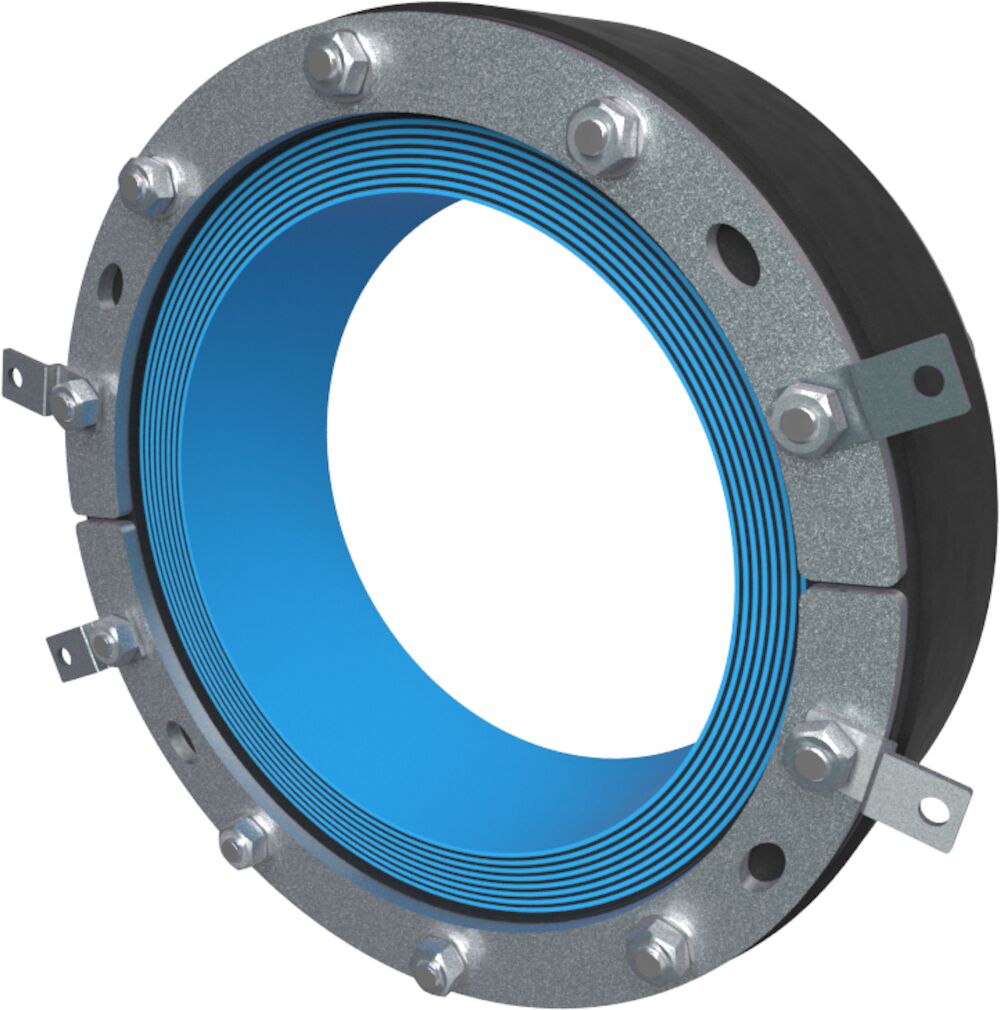

Roxtec: RS 255 UG WOC Cable Seal for 171mm - 204mm

The Roxtec RS UG™ is a two-part seal for installation around single cables or pipes entering via foundations. It works as a long-lasting barrier against flooding, gas, humidity and rodents. The transit can be installed also in wet conditions and environments with running water. It withstands extreme cable bending and has a +5mm tolerance towards the aperture as well as an indicator showing when a compressed seal is achieved. The seal can be installed into sleeves, conduits and core drilled holes.

• For cable/pipe Ø: 171mm - 204mm (6.732" - 8.031")
• External dimensions Ø: 255mm x 95mm (10.039" x 3.74")
• Aperture dimension Ø: 255mm - 260mm (10.039" - 10.236")
