By 123eWireless

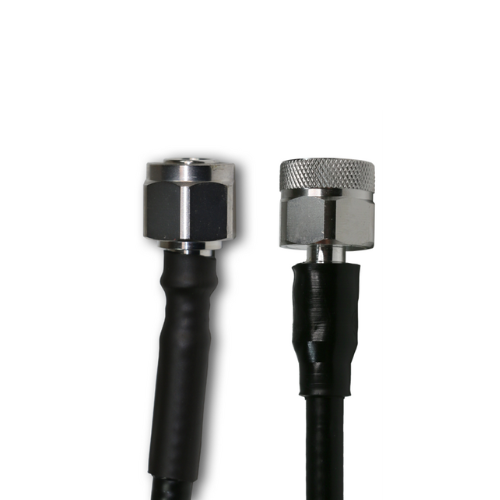

2.25 Male to N Male 1/4" Superflex Low PIM Jumper, 25ft
Part Number:
123-14SFJMNM-25-P
Couldn't load pickup availability
2.25 Male to N Male 1/4" Superflex Low PIM Jumper, 25ft
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50 Ohm |
| PIM | -171dBc |
| Return Loss | ≤-27dB @3GHz, ≤-25dB @6GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°C to +85°C |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Maximum Bending Radius | 0.78" |
| Connector A | 2.2-5 Male |
| Connector B | N Male |
| Jacket Color | Black |
| Jacket Material | PE - UV Resistant |
| Outer Diameter | 0.252in |
| Type | |
|---|---|
| Size | |
| Connection type |
If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible.
