By 123eWireless
123eWireless: 4.3-10 Male to 2.25 Male RG402 Plenum
Part Number:
123-14FMPHMJM-25-P
Couldn't load pickup availability

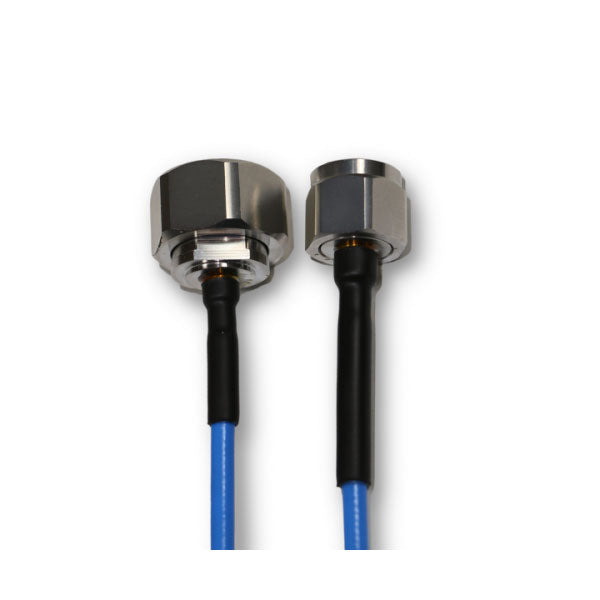

4.3-10 Male to 2.25 Male RG402 Plenum (Flex Form Mini .141) Jumper, 25ft
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 600-3000 Mhz |
| Impedance | 50 Ohm |
| PIM | -162dBc |
| Return Loss | ≤-27dB @3GHz, ≤-24dB @6GHz |
| VSWR | ≤1.1@0～3G，≤1.15@3～6G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -55°C to +125°C |
| RoHS Compliance | Yes |
| Weather Standard | IEC 68 40/85/ 21 |
| PHYSICAL SPECIFICATIONS | |
| Connector A | 4.3-10 Male |
| Connector B | 2.25 Male |
| Jacket Color | Blue |
| Outer Diameter | 4.15±0.10 mm |
| Type | |
|---|---|
| Size | |
| Connection type |
