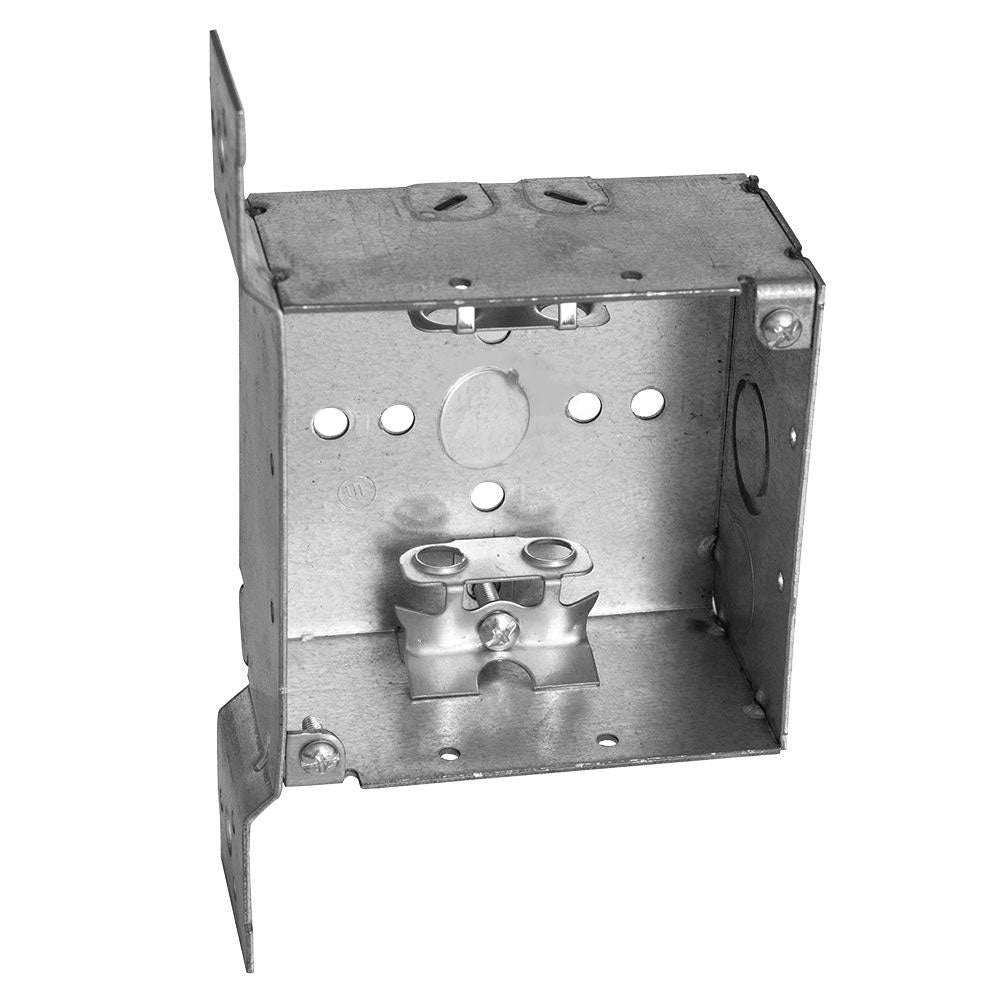

4" Square Steel Electrical Box, Welded, 2-1/8" Deep, (3) 1/2

4" Square Steel Electrical Box, Welded, 2-1/8" Deep, (3) 1/2" Knockouts, (1) EKO Knockout, NMSC Clamps, Flush

• Features:
  • Welded steel construction with; TS side-mount flush bracket with gauging tabs and recessed nailing spurs and {NMSC} nonmetallic sheathed cable clamps
  • BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
  • Combination screw heads allow quick installation
  • Combination Phillips / slotted screw heads

  • Steel
  • Acceptable in 2-hour fire rated walls
• Applications:
  • Boxes are installed in walls or ceilings for lighting fixtures, switches or receptacles
  • Used where multiple conductors runs are split into two or more directions to bring power to a number of electrical devices
• Specifications:
  • Cubic Capacity: 30.3 cu. in

  • Raised: Ground
  • Length / Depth: 2.188"

  • Width: 4.313"
  • Height: 7"

  • Weight: 489.8 g

  • Side KO's: (2) 1/2", 1-TKO
  • Bottom KO's: (1) 1/2"
