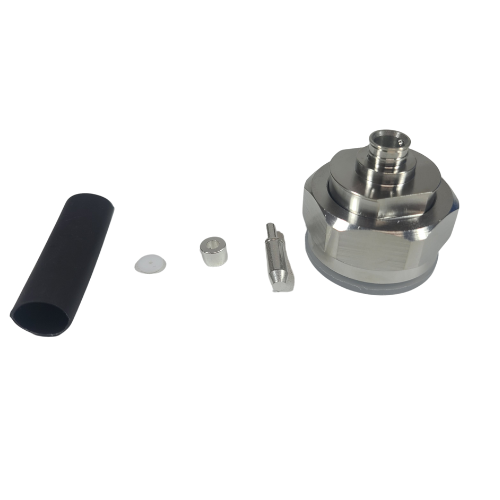

7/16 DIN Male Solder Type Connector for RG402 Cable
Part Number:
123-RG402DMS
Contact Us for Pricing & Availability
Couldn't load pickup availability
7/16 Din Male Solder Type Connector Application: Connector for RG402 cable (model RG402 or equivalent). The 7/16 Din Male Solder Type Connector is specifically designed for use with RG402 cable (model RG402 or equivalent). This connector is ideal for applications that require reliable, low-impact signal connections in telecommunications systems, data communications, and other signal transmission applications.
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | DC-6GHz |
| Impedance | 50 Omhs |
| PIM | < -160 dBc |
| VSWR | < 1.25 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -65°C to ~165°C |
| Weather Standard | IP68 |
| PHYSICAL SPECIFICATIONS | |
| Gender | Male |
| Inner Conductor | Spring Copper Brass |
| Mating Cycles | >100 |
| Options | Solder Type |
| Outer Conductor | Brass |
| Connector A | 7/16 Din Male |
Contact Us for Pricing & Availability
| Type | |
|---|---|
| Connection type |
