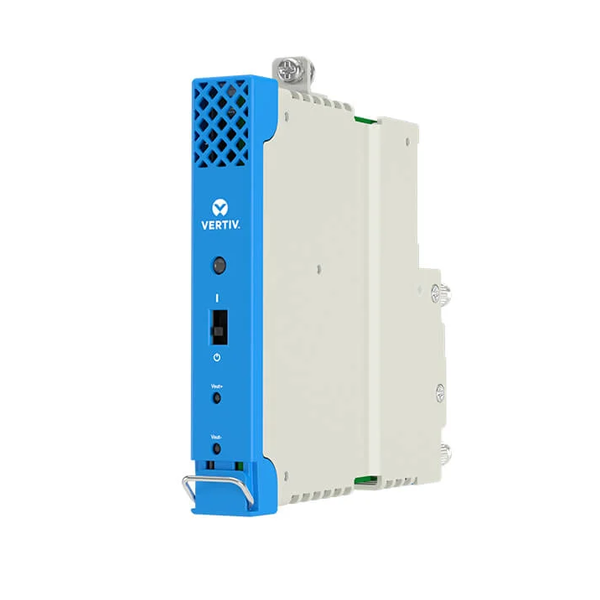

Vertiv: eSure Power Extend Converter, C48/58-1000

The Vertiv™ eSure™ Power Extend Converter (Model C48/58-1000B, Spec. No. 1C48581000B) is a compact DC/DC converter unit which offers efficient power conversion.  It operates from a nominal -48 VDC source to provide regulated -58 VDC to the load for continuous operation to end of battery discharge. The C48/58-1000B simply plugs into a load position on the system’s distribution panel which accepts a bullet device.  The bullet terminals provide connections for DC input and the regulated DC output.  The supplied return lead is installed from the device to the panel's return bar.
