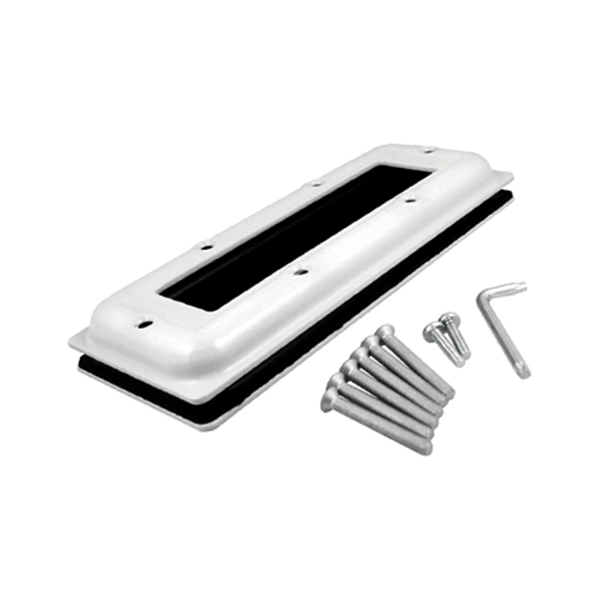

Roxtec: CF 16 Frame Cable Entry Seal Kit

The Roxtec CF 16 is a low-profile metal frame. The compression unit is integrated in the frame.

• To be used with corresponding Roxtec components to form a complete sealing solution
• Attachment by bolting
• Available in kits
• Available in powder-coated mild steel or stainless steel AISI 304
• Adapter plates available
• Frame openings: 1
• Packing space (in)1.575 x 6.299
• External dimensions WxHxD (in): 3.661 x 9.213 x 1.654
• Aperture dimensions WxH (in): 2.795(+0.039/-0.039) x 7.362(+0.079/-0.02)
