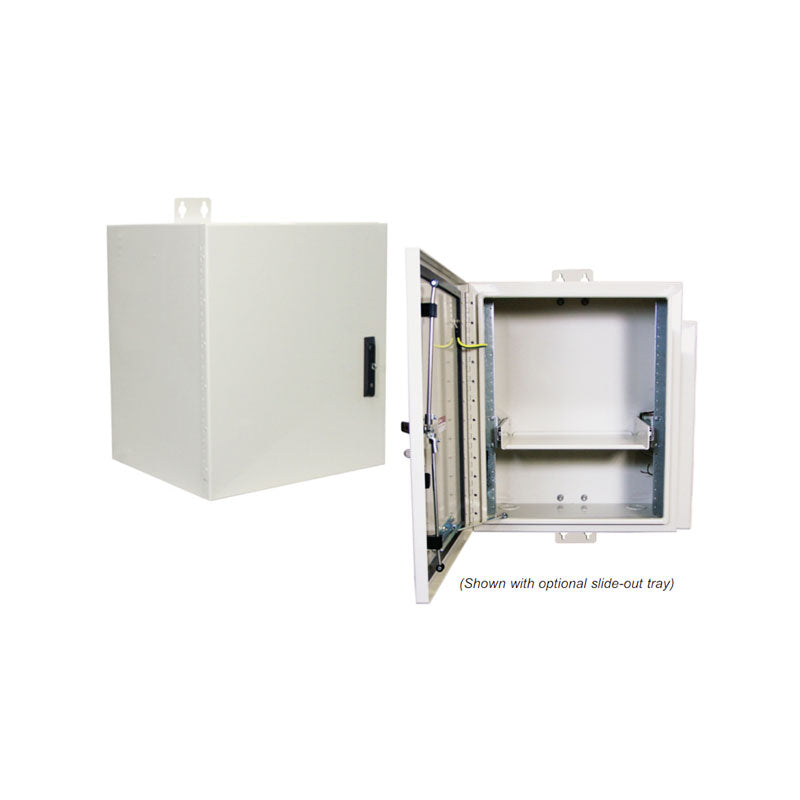

Charles: AAV Charles Cube

Charles: CUBE RL 1000 Series cabinets provide environmental protection of Ethernet
equipment and other electronics for wireless backhaul applications at cellsites
and other remote outdoor applications. With 14RU of rack space, these compact
enclosures can be flexibly mounted in small spaces. An optional slide-out tray
(97-001990-A) provides storage of equipment that is not rack mountable.

• Overall Dimensions: 26" H x 22" W x 20" D
• Rack Space: 14RU

• Rack Width:  19" EIA Standard

• Hole Spacing on Racks: EIA 12-24

• Bonding & Grounding: (1) 8 Position, 2-Hole Ground Bars

• Fuse Panel: (1) Wallmount 10 Position GMT Type

• Cable Entrance: (5) 1.75/2.5" Double Knockouts

• Color: Off-White

• Construction: Welded Aluminum

• Mounting: Wall or H-Frame, Pole Mount with optional kit
• Note: RL1003 Models have Heat Exchanger positioned on the side of the cabinet,
