By CommScope

CommScope: 12-Port Sector Antenna, 4x 694-896 and 8x 1695-2360 MHz, 65° HPBW, 6x RETs

Part Number: NNH4-65B-R6N17
Request Quote

Shipping:
Due to the size of this product, shipping estimates at checkout may not be accurate which may result in an increased shipping cost after purchase. We will contact you with details for approval.

CommScope: 12-Port Sector Antenna, 4x 694–896 and 8x 1695–2360 MHz, 65°
HPBW, 6x RETs

  • Array configuration provides capability for 4T4R (4x MIMO) on Low band and High band
  • Optimized SPR performance across all operating bands
  • Excellent wind loading characteristics
  • The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
  • Antenna Type: Sector
  • Band: Multiband
  • Color: Light Gray (RAL 7035)
  • Grounding Type: RF connector inner conductor and body grounded to reflector and
    mounting bracket
  • Performance Note: Outdoor usage
  • Radome Material: Fiberglass, UV resistant
  • Radiator Material: Aluminum    |   Low loss circuit board
  • Reflector Material: Aluminum

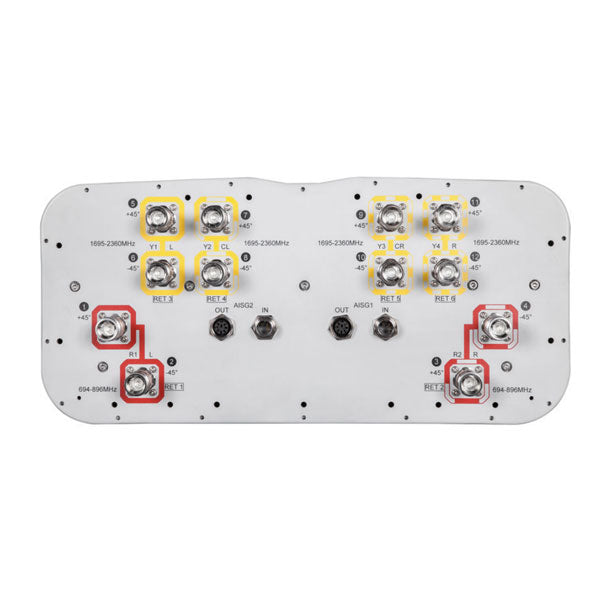

  • RF Connector Interface: 4.3-10 Female
  • RF Connector Location: Bottom
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 0
  • RF Connector Quantity, low band: 4
  • RF Connector Quantity, total: 12
Request Quote
Antenna-type
  • Sector
Frequency range 694-896/1695-2360 MHz
Connection type 4.3-10 Female
Port count 12
Color-pattern
  • Light Gray
