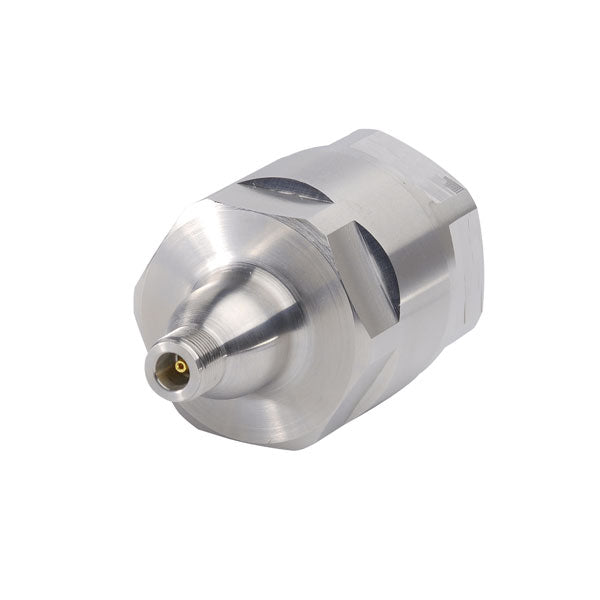

CommScope: Type N Female Positive Stop for 1-5/8" Cable

CommScope: Type N Female Positive Stop for 1-5/8" Cable

• Connector Impedance: 50 ohm
• Operating Frequency Band: 0-2700MHz
• Cable Impedance: 50 ohm
• 3rd Order IMD, typical: ­116 dBm @ 910 MHz
• 3rd Order IMD Test Method: Two +43 dBm carriers
• RF Operating Voltage, maximum (vrms):  707.00 V
• dc Test Voltage: 2000 V
• Outer Contact Resistance, maximum: 0.30 mOhm
• Inner Contact Resistance, maximum: 2.00 mOhm
• Insulation Resistance, minimum: 5000 MOhm
• Average Power: 0.6 kW @ 900 MHz
• Peak Power, maximum: 10.00 kW
• Insertion Loss, typical: 0.05 dB
• Shielding Effectiveness: 130 dB
