  3. CommScope: Type N Female RingFlare™ for 5/8" LDF4.5-50 Cable
By CommScope

CommScope: Type N Female RingFlare™ for 5/8" LDF4.5-50 Cable

Part Number: L4.5PNF-RC
$34.38 USD
$34.38 USD
T-Mobile SKU:
6336

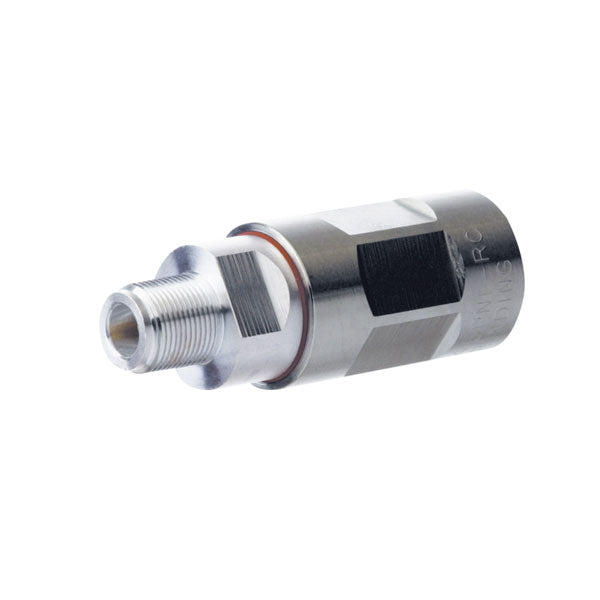

CommScope: Type N Female RingFlare™ for 5/8 in LDF4.5-50 cable

  • Connector Impedance: 50 ohm
  • Operating Frequency Band: 0 – 6100 MHz
  • Cable Impedance: 50 ohm
  • RF Operating Voltage, maximum (vrms): 707.00 V
  • dc Test Voltage: 2000 V
  • Outer Contact Resistance, maximum: 0.30 mOhm
  • Inner Contact Resistance, maximum: 2.00 mOhm
  • Insulation Resistance, minimum :5000 MOhm
  • Average Power: 0.6 kW @ 900 MHz
  • Peak Power, maximum: 40.00 kW
  • Insertion Loss, typical: 0.05 dB
  • Shielding Effectiveness: -110 dB
$34.38 USD
$34.38 USD
Type LDF4.5-50 Cable
Size 5/8"
Connection type N-Female RingFlare
