By Microlab

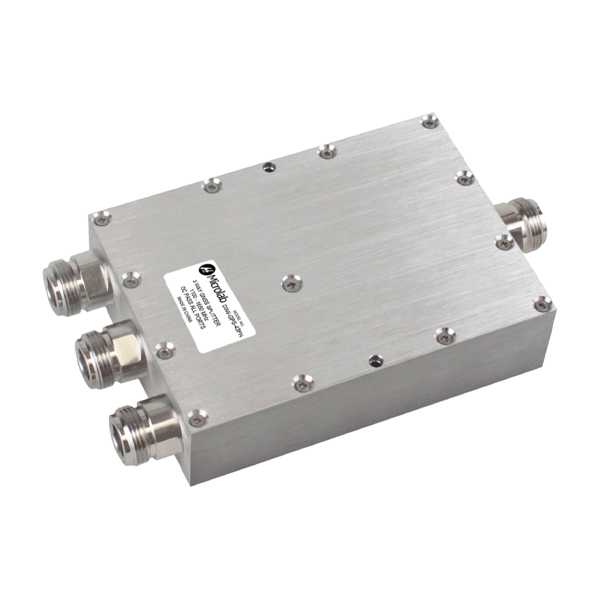

Microlab: 3-Way GNSS Splitter 1100-1650MHz 5W N-Type Indoor DC Pass All Ports
Part Number:
D3W-GPS-43FN
Request Quote
Couldn't load pickup availability
Microlab: 3-Way GNSS Splitter 1100-1650MHz 5W N-Type Indoor DC Pass All Ports
Microlab DxW-GPS-43FN Wilkinson style splitters have been designed for GNSS applications. All ports pass DC to the antenna LNA. The unit has a frequency coverage from 1100 to 1650 MHz, and offers high output isolation and good VSWR. Wide frequency of operation allow for use with GPS L1/L2/ L5, Galileo E1/E5/E6 and Glonass G1/G2/G3 bands.
- 1100-1650 MHz Frequency Range
- 5 & 10 W Power Rating
- Low RF Insertion Loss
- 20 dB Isolation
- RoHS compliant
- N-Type Connectors
Request Quote
| Frequency range | |
|---|---|
| Connection type |
If you have any questions about this product, please let us know by filling out the form below, and we will contact you as soon as possible.
